In the world of industrial automation and smart systems, efficiency, reliability, and safety are paramount. Whether you’re running a fast-paced conveyor system, a robotic assembly line, or a decentralized sensor network, the reliability of your connections can make or break operations.
This is exactly where M12 connectors come into play.
Despite their small form factor, M12 connectors have become a gold standard in rugged industrial environments, providing robust connections for sensors, actuators, fieldbus systems, and Ethernet communication—even in the harshest conditions.
If you’ve ever wondered whether M12 is the right choice for your system—or how to select the correct type—you’re in the right place.
What Is an M12 Connector?

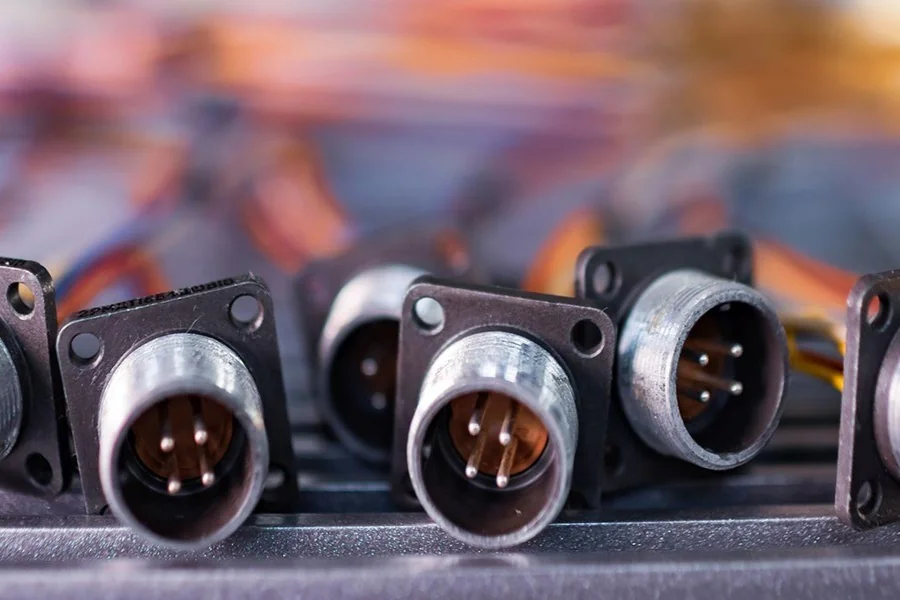

An M12 connector is a circular, threaded connector with a 12mm locking interface. It’s commonly used to connect field devices in industrial automation systems, robotics, material handling, and transportation.
They are standardized under IEC 61076-2-101, meaning you can count on consistent size, thread pitch, and mating compatibility across vendors—making them ideal for scalable, multi-vendor systems.
M12 connectors come in a range of coding types, each tailored for specific applications:
- A-coded: Sensors, actuators, power supplies
- B-coded: Fieldbus systems like Profibus
- D-coded: 100 Mbps Ethernet
- X-coded: High-speed Ethernet (up to 10 Gbps)
- L-coded: Compact power transmission (up to 16A)
- T-coded: DC power (up to 12A)
Understanding the correct coding is critical—using the wrong one can damage equipment or cause signal interference.
Why Are M12 Connectors So Widely Adopted?
Ask any automation engineer, and they’ll tell you: M12s just work. They’re compact, easy to install, and incredibly durable. But beyond convenience, M12 connectors address the core concerns of modern industrial systems.
1. Environmental Resilience
M12 connectors are often IP67 or IP68 rated, making them dust-tight and resistant to water immersion. This is essential for outdoor or washdown environments like food processing plants or smart agriculture fields.
2. Vibration Resistance
The threaded locking mechanism ensures the connector stays securely mated, even when exposed to high vibration or movement—perfect for mobile robots, transportation vehicles, and automated material handling systems.
3. Signal Integrity
Thanks to their internal shielding (especially D- and X-coded types), M12 connectors can carry high-speed data without being affected by EMI/RFI interference. That means fewer communication errors and more reliable system performance.
4. Easy Installation
Tool-free and field-terminable versions are available, saving time on installations and reducing the risk of improper mating—a crucial factor for large systems with hundreds of devices.
Common Question: How Do M12 Connectors Compare to RJ45?
While RJ45 connectors are common in office and commercial networks, they aren’t well-suited for industrial environments. RJ45 plugs can disconnect under vibration, aren’t waterproof, and don’t offer strain relief or locking features.
M12 connectors, on the other hand, are:
- Fully sealed
- Shock- and vibration-resistant
- More durable (rated for more mating cycles)
- Better suited for confined or outdoor installations
That’s why many industrial Ethernet applications are shifting toward D-coded and X-coded M12 connectors.
Where M12 Connectors Are Used
M12 connectors are incredibly versatile and are being adopted across industries far beyond factory automation:
- Material Handling Systems: Connect sensors and motors on conveyors, lifts, and AGVs
- Smart Transportation: Used in railway signaling, onboard communication, and rugged cameras
- Robotics: Power and data lines for industrial robot arms and mobile robots
- Building Automation: Lighting, HVAC, and access control systems
- Food and Beverage: Waterproof models are used in environments requiring frequent washdowns
- Renewable Energy: Connect wind turbine sensors and solar tracking systems in outdoor setups
They allow modular, scalable, and future-ready design—especially valuable in systems that evolve rapidly.
Use Case: M12 in Automated Lifts and Logistics
One of the most practical examples of M12 connector usage is in modern lifts, elevators, and logistics equipment. These systems rely on a mix of sensors, power inputs, data feedback loops, and motor control—all of which need to communicate reliably.
M12 connectors by Amphenol LTW are specifically engineered for such material handling applications. With compact but rugged designs, they reduce wiring complexity while maintaining robust connections under vibration and load stress.
When systems are in constant motion—and safety is non-negotiable—using tested and proven M12 connectors can ensure smoother operations and long-term performance.
Tips for Selecting the Right M12 Connector
Choosing an M12 connector isn’t just about shape and size. It’s about matching the connector’s features with your system’s performance needs.
Here’s what you should consider:
1. Define Signal Type and Speed
Are you transmitting analog signals, digital data, or power? X-coded connectors support up to 10 Gbps, while T-coded and L-coded are optimized for power.
2. Check the Pin Count
M12 connectors are available in 3 to 12-pin configurations. More pins mean more functionality but may also require larger cable diameters.
3. Assess Environment Conditions
Will it be submerged? Near chemicals? Exposed to UV? Choose a connector with proper IP rating, chemical resistance, and material durability.
4. Determine Mating Cycle Needs
Standard connectors may last 100–500 mating cycles. For high-maintenance systems, consider gold-plated contacts or heavy-duty variants rated for 1,000+ cycles.
5. Evaluate Field Service Requirements
If repairs happen in the field, choose connectors with tool-free assembly or pre-wired options to speed up replacement time.
Avoiding Common Mistakes
Many system issues can be traced back to poor connector selection. Here are mistakes to avoid:
- Mismatching codes (e.g., trying to use an A-coded plug in a D-coded socket)
- Overloading current beyond the connector’s rating
- Choosing the wrong IP rating for wet environments
- Using non-shielded versions in high-interference areas
- Skipping strain relief in dynamic cable runs
All of these can lead to connection failure, signal degradation, or worse—system downtime.
Future Trends for M12 Connectors
M12 connectors are continuing to evolve to meet the demands of Industry 4.0 and IIoT (Industrial Internet of Things). Some of the exciting advancements include:
- Integrated diagnostics: New smart connectors can report usage data, wear levels, or environmental exposure.
- Miniaturization with high-speed support: Smaller connectors with the ability to carry 10 Gbps Ethernet.
- Overmolded solutions: For plug-and-play installations that improve IP rating and strain relief.
- Power + Data combo designs: Hybrid models to reduce cable count in modular devices.
Staying updated with these advancements can help ensure your systems are not just current, but ready for what’s next.
Sourcing Recommendations for Procurement Teams
If you’re in charge of sourcing M12 connectors, here’s how to avoid surprises later in production:
- Request CAD files and datasheets to verify fit and compatibility
- Validate certifications like UL, CE, RoHS, and IEC standards
- Confirm stock availability and lead times for bulk orders
- Ask for sample units for testing before committing to full runs
- Partner with suppliers who offer engineering support for integration questions
Partnering with reputable manufacturers ensures consistent quality, faster troubleshooting, and better lifecycle cost performance.
Final Thoughts
M12 connectors are the unsung heroes of the industrial world. Their compact size, durability, and versatility make them a cornerstone of any high-performing system that demands both reliability and flexibility.
Whether you’re building next-gen factory equipment, smart logistics platforms, or weather-resistant sensor networks, M12 connectors are ready to deliver. They solve real-world problems for engineers, field techs, and procurement teams—without taking up space or creating complexity.
Choose them wisely, implement them thoughtfully, and your system will thank you for years to come.
